Sharp regression discontinuity with `pymc` models#

import causalpy as cp

%load_ext autoreload
%autoreload 2
%config InlineBackend.figure_format = 'retina'
seed = 42

df = cp.load_data("rd")

Linear, main-effects, and interaction model#

Note

The random_seed keyword argument for the PyMC sampler is not necessary. We use it here so that the results are reproducible.

result = cp.RegressionDiscontinuity(
    df,
    formula="y ~ 1 + x + treated + x:treated",
    model=cp.pymc_models.LinearRegression(sample_kwargs={"random_seed": seed}),
    treatment_threshold=0.5,
)

fig, ax = result.plot()

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [beta, y_hat_sigma]

Sampling 4 chains for 1_000 tune and 1_000 draw iterations (4_000 + 4_000 draws total) took 2 seconds.
Sampling: [beta, y_hat, y_hat_sigma]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]

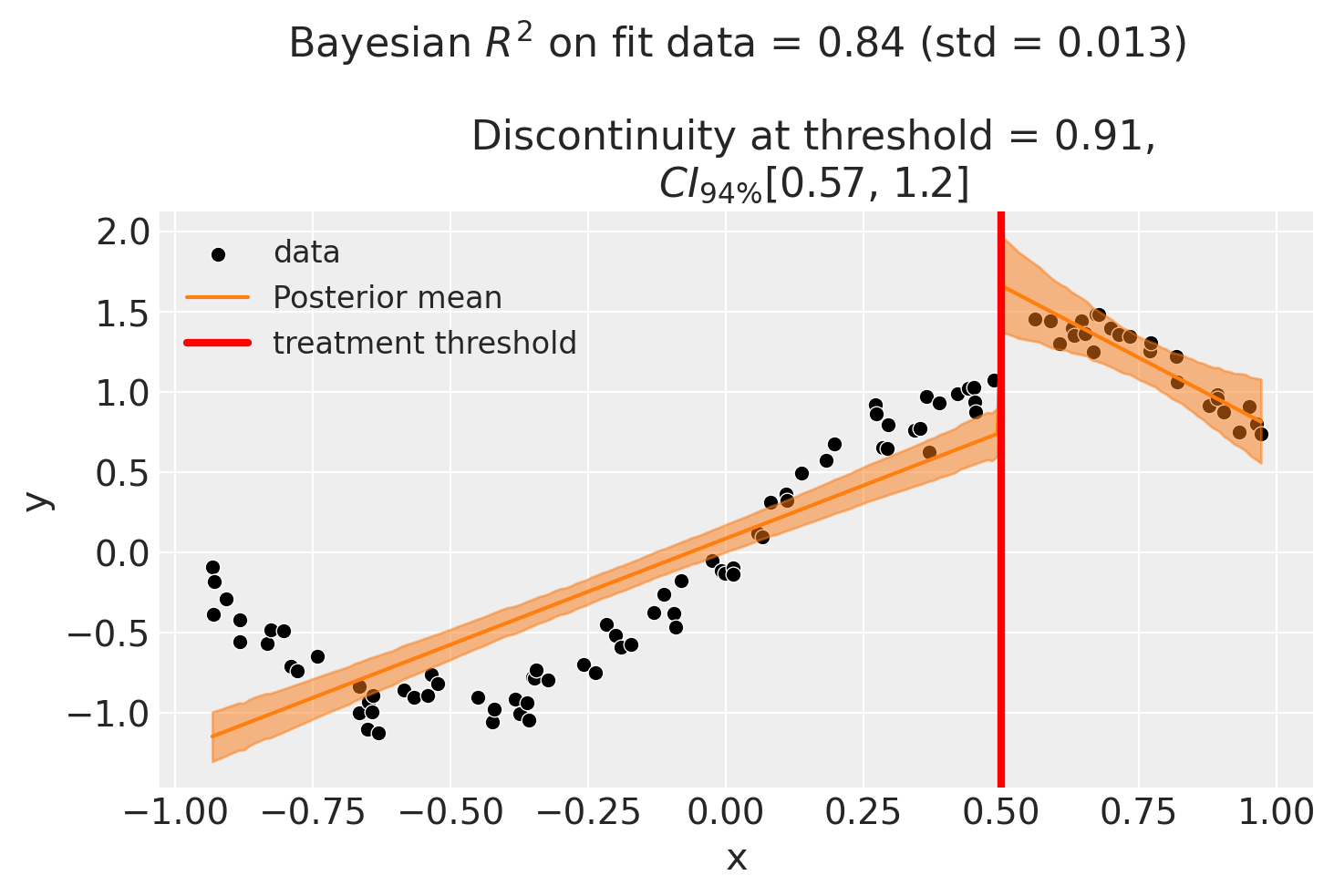

../_images/9f7cdc2d04bc0c1073e22fb653c9e989ea9913d7925a5903c375fb71e695dbc7.png

Though we can see that this does not give a good fit of the data almost certainly overestimates the discontinuity at threshold.

Using a bandwidth#

One way how we could deal with this is to use the bandwidth kwarg. This will only fit the model to data within a certain bandwidth of the threshold. If \(x\) is the running variable, then the model will only be fitted to data where \(threshold - bandwidth \le x \le threshold + bandwidth\).

result = cp.RegressionDiscontinuity(
    df,
    formula="y ~ 1 + x + treated + x:treated",
    model=cp.pymc_models.LinearRegression(sample_kwargs={"random_seed": seed}),
    treatment_threshold=0.5,
    bandwidth=0.3,
)

fig, ax = result.plot()

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [beta, y_hat_sigma]

Sampling 4 chains for 1_000 tune and 1_000 draw iterations (4_000 + 4_000 draws total) took 3 seconds.
There was 1 divergence after tuning. Increase `target_accept` or reparameterize.
Sampling: [beta, y_hat, y_hat_sigma]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]

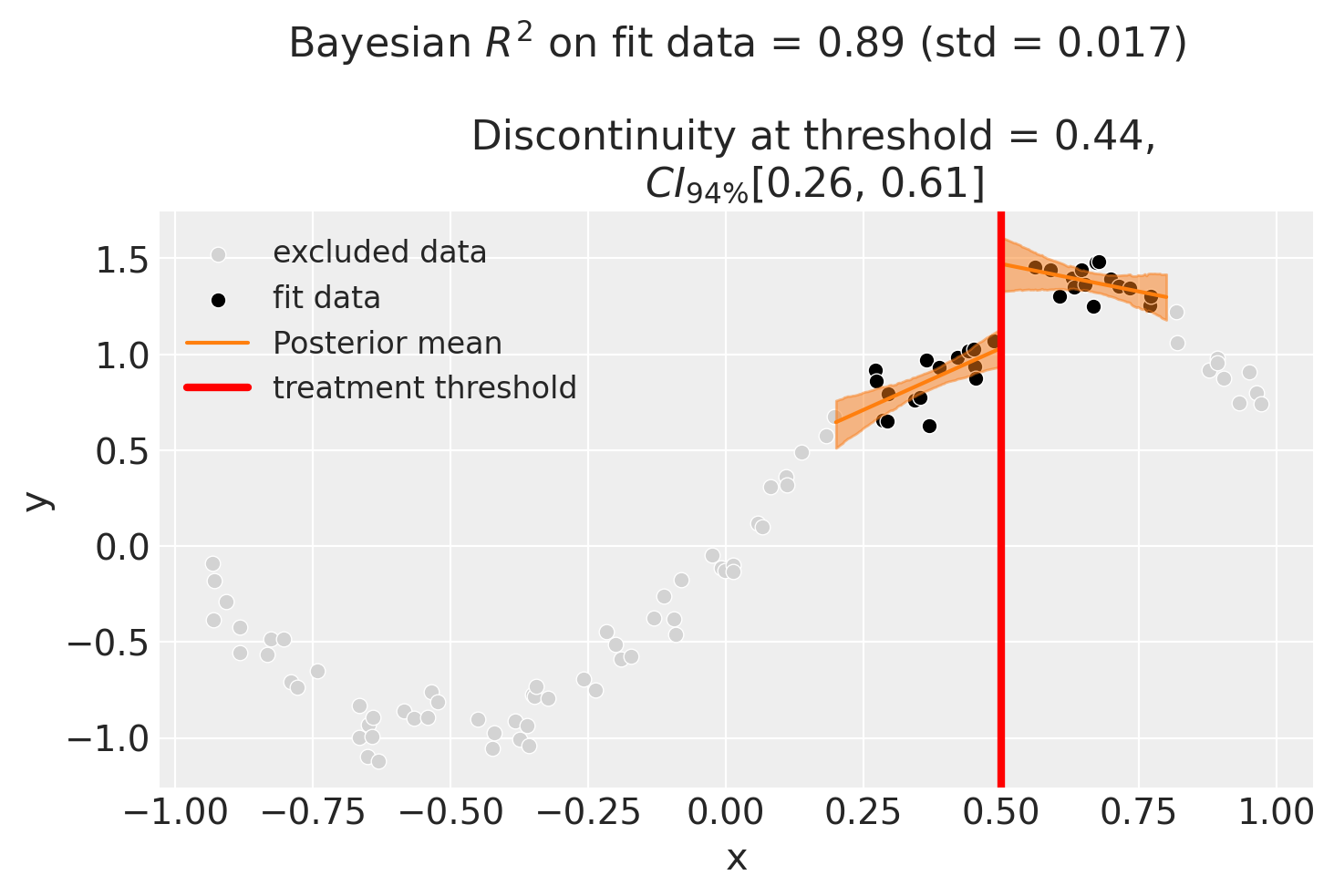

../_images/f208dfdb0a0f4a62ba738072e6052d95a961f59a7566aa8cb0180755e099cded.png

We could even go crazy and just fit intercepts for the data close to the threshold. But clearly this will involve more estimation error as we are using less data.

result = cp.RegressionDiscontinuity(
    df,
    formula="y ~ 1 + treated",
    model=cp.pymc_models.LinearRegression(sample_kwargs={"random_seed": seed}),
    treatment_threshold=0.5,
    bandwidth=0.2,
)

fig, ax = result.plot()

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [beta, y_hat_sigma]

Sampling 4 chains for 1_000 tune and 1_000 draw iterations (4_000 + 4_000 draws total) took 1 seconds.
Sampling: [beta, y_hat, y_hat_sigma]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]

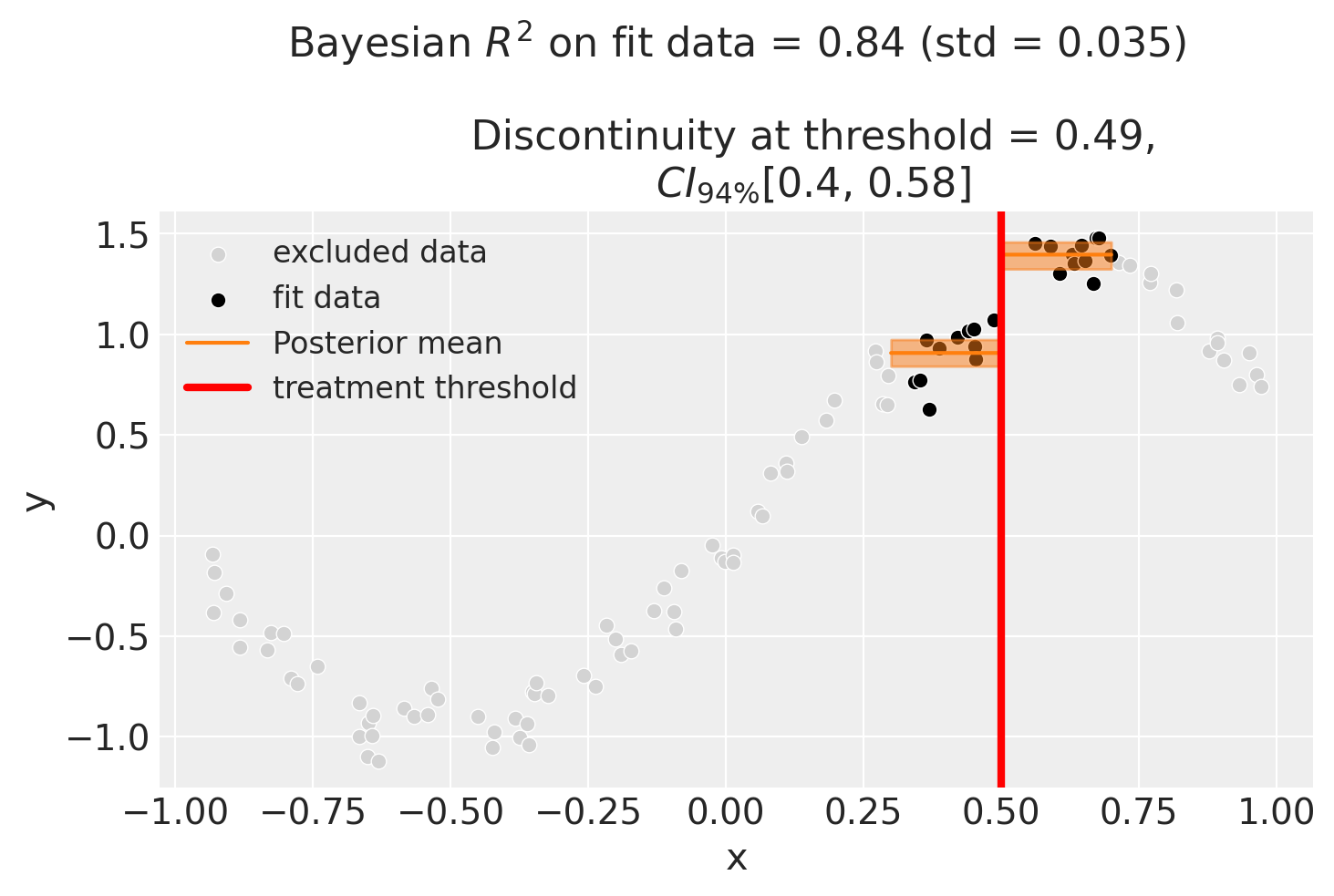

../_images/f08bc787a3a3ac0b9f8df0839d6668e5e3940341d3e8aa12061e651c6a978694.png

Using basis splines#

Though it could arguably be better to fit with a more complex model, fit example a spline. This allows us to use all of the data, and (depending on the situation) maybe give a better fit.

result = cp.RegressionDiscontinuity(
    df,
    formula="y ~ 1 + bs(x, df=6) + treated",
    model=cp.pymc_models.LinearRegression(sample_kwargs={"random_seed": seed}),
    treatment_threshold=0.5,
)

fig, ax = result.plot()

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [beta, y_hat_sigma]

Sampling 4 chains for 1_000 tune and 1_000 draw iterations (4_000 + 4_000 draws total) took 1 seconds.
Sampling: [beta, y_hat, y_hat_sigma]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]
Sampling: [y_hat]

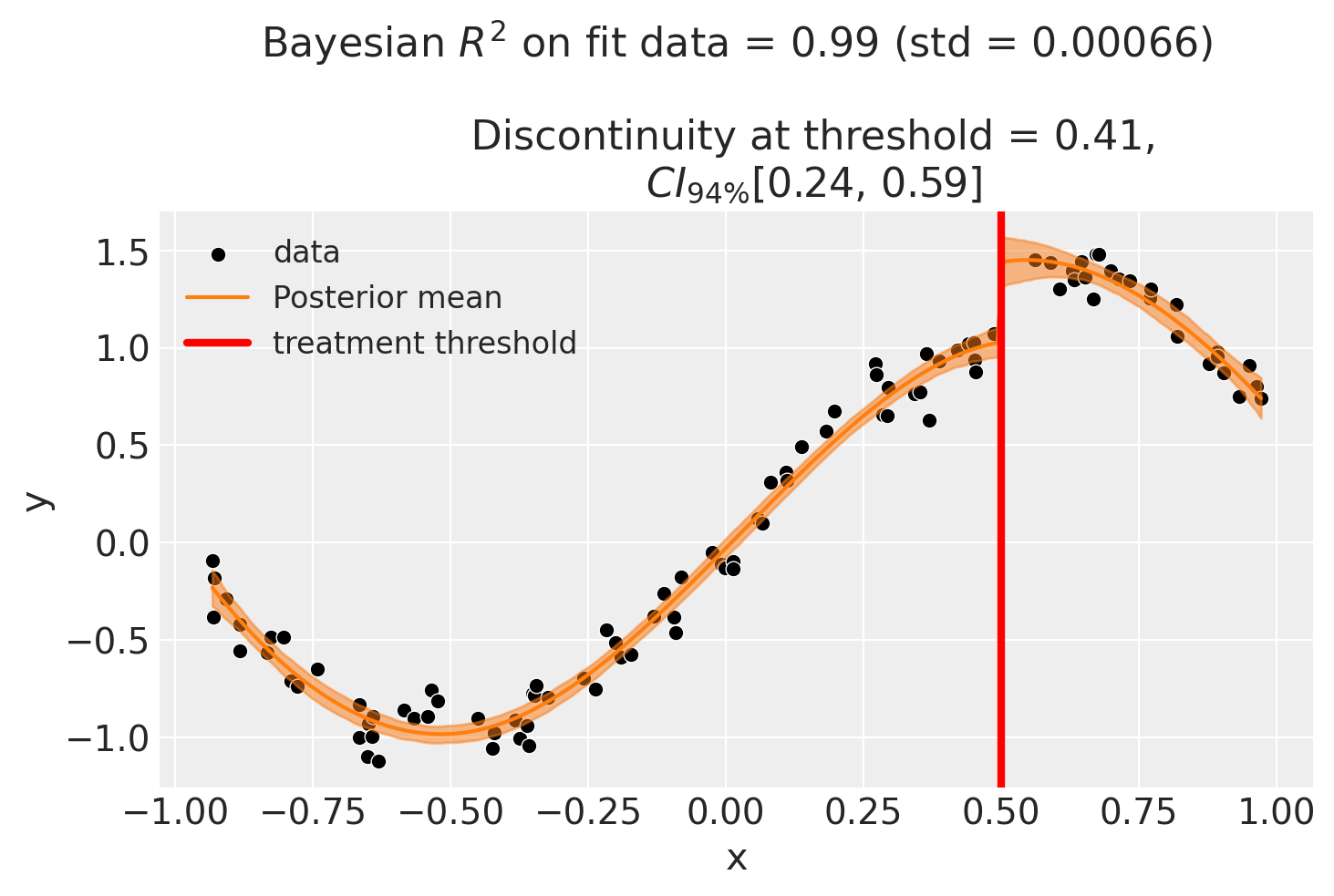

../_images/a9f7bed6b09f351096b67e343d3e9aff8a341d17091d4be8b703d5008a96a032.png

As with all of the models in this notebook, we can ask for a summary of the model coefficients.

result.summary()

Regression Discontinuity experiment
Formula: y ~ 1 + bs(x, df=6) + treated
Running variable: x
Threshold on running variable: 0.5
Bandwidth: inf
Donut hole: 0.0
Observations used for fit: 100

Results:
Discontinuity at threshold = 0.41$CI_{94\%}$[0.24, 0.59]


Model coefficients:
    Intercept        -0.23, 94% HDI [-0.32, -0.14]
    treated[T.True]  0.41, 94% HDI [0.24, 0.59]
    bs(x, df=6)[0]   -0.6, 94% HDI [-0.78, -0.41]
    bs(x, df=6)[1]   -1.1, 94% HDI [-1.2, -0.93]
    bs(x, df=6)[2]   0.28, 94% HDI [0.12, 0.43]
    bs(x, df=6)[3]   1.7, 94% HDI [1.5, 1.8]
    bs(x, df=6)[4]   1, 94% HDI [0.66, 1.4]
    bs(x, df=6)[5]   0.56, 94% HDI [0.36, 0.75]
    y_hat_sigma      0.1, 94% HDI [0.089, 0.12]

Effect Summary Reporting#

For decision-making, you often need a concise summary of the causal effect. The effect_summary() method provides a decision-ready report with key statistics. Note that for Regression Discontinuity, the effect is a single scalar (the discontinuity at the threshold), similar to Difference-in-Differences.

# Generate effect summary
stats = result.effect_summary()
stats.table

	mean	median	hdi_lower	hdi_upper	p_gt_0
discontinuity	0.411137	0.409325	0.239555	0.601715	1.0

print(stats.text)

The discontinuity at threshold was 0.41 (95% HDI [0.24, 0.60]), with a posterior probability of an increase of 1.000.

You can customize the summary with different directions and ROPE thresholds:

Direction: Test for increase, decrease, or two-sided effect
Alpha: Set the HDI confidence level (default 95%)
ROPE: Specify a minimal effect size threshold

# Example: Two-sided test with ROPE
stats = result.effect_summary(
    direction="two-sided",
    alpha=0.05,
    min_effect=0.2,  # Region of Practical Equivalence
)
stats.table

	mean	median	hdi_lower	hdi_upper	p_two_sided	prob_of_effect	p_rope
discontinuity	0.411137	0.409325	0.239555	0.601715	0.0	1.0	0.99125

print("\n" + stats.text)

The discontinuity at threshold was 0.41 (95% HDI [0.24, 0.60]), with a posterior probability of an effect of 1.000.
